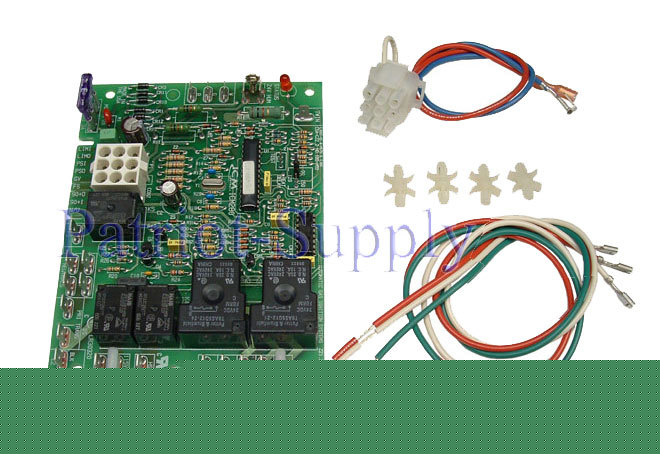

ICM280 furnace control board replaces B18099, 50T35

ICM280 furnace control board replaces B18099, 50T35

(ICM-280, ICM 280, ICM280C, ICM-280C, ICM 280C)
REPLACES- UTEC: 1012-933D, GOODMAN: B18099-06, B18099-08, B18099-10 and B18099-13 B18099-13S HSI modules, TEXAS INSTRUMENTS 41F-5, WHITE-RODGERS 50T35-730 50T35-743
9 PLUG WIRING HARNESS INCLUDED
* Low cost, direct replacement board for Goodman, Janitrol, TI, White-Rodgers and UTEC
* Microprocessor based design for precise timing
* Functions with all 24 VAC thermostats
* Diagnostic fault codes (blinking LED) for simple troubleshooting
* Twining compatible with another ICM280
* For 80+ and 90+ applications
* 9-pin card slot connection and 9-pin Molex connector on board
Humidity: 5% to 95% R.H. (non-condensing) @ +55ºF
Vibration: 13.8Hz @ 0.2 Gs for one hour in each orthogonal axis
Voltage Range: Line (98 to 132 VAC) @ 60Hz
Cool Blower: 10A, 2 HP, 240 VAC
Inducer Motor: 4A, FLA-8.0 LRA @ 120 VAC
Trial for Ignition: 7.0 seconds
- Ignition activation period = 5 seconds
- Flame establishing period = 2 seconds
Flame Failure Response Time: 0.8 seconds maximum
Inducer Pre-Purge Time: 1 Second
- 20 seconds, second and third ignition trials
Total Trials for Ignition: 3 (automatically reset after one hour)
Heat Blower on Delay: 30 seconds
Heat Blower Off Delays: 90, 120 and 150 seconds
Cool Blower on Delay: 5 seconds
Cool Blower Off Delay: 60 seconds
1: Ignition failure (after 3 tries and start of soft lockout)
2: Pressure switch stuck closed
3: Pressure switch failed to close
5: Flame present with gas valve output off
Rapid Flashing: Wrong polarity of 120VAC and Neutral
