Fellows FS180 7" ext./int. 6.3" spur/helicl gear shaper

Fellows FS180 7" ext./int. 6.3" spur/helicl gear shaper

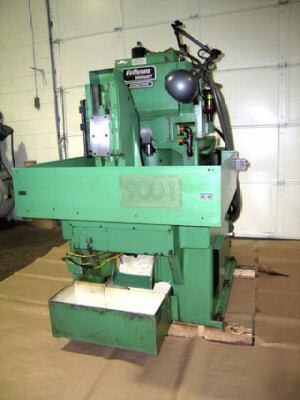

Liberty Machinery Company You are looking at a No. FS180 FELLOWS 7"Ext./Int. 6.3" Spur/Helical 1.25" Face 90-2000SPM Gear Shaper Serial No .36697Condition - UsedNew - 1984 For Cutting External and Internal Spur and Helical Gears, Splines, Clutches,
Cams, and other Non-Involute Shapes.
Motor Driven with 15HP, 460V, 3 Phase, 60 Cycle Main Motor. 3/4 HP Coolant
Pump Motor. M.D. Lubrication System. Complete Electrical Controls. SPECIFICATION:External Pitch Diameter - Nominal 7"
Internal Pitch Diameter - Nominal 7"
Spur Diametral Pitch - Maximum 6.3
Helical Diametral Pitch - Maximum 6.3
External & Internal Face Width - Maximum 1.25"
Helix Angle with Standard Guides - Maximum 45 Degrees (Using 5" Cutter)
Speed of Cutter Spindle 90-2000 SPM
Center Distance - Maximum +6.3"
Approximate Dimensions 116"L x 71"W x 71"H
AC Servo Direct Drives for Stroking Speed. Work & Cutter Spindle Rotation.
Positioning mechanism, Cutter elevating mechanism, Automatic Lubrication
