Hp 75000 series c E1458A 96 channel digital i/o

Hp 75000 series c E1458A 96 channel digital i/o

click link below to go to the store.

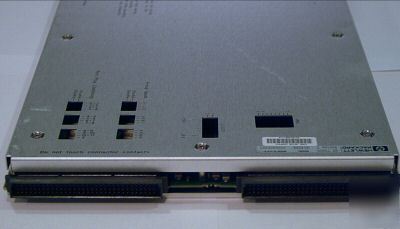

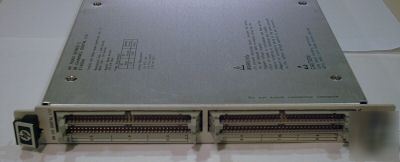

* The Agilent E1458A 96-Channel Digital Input/Output module is a C-size, 1-slot, register-based VXI module that offers twelve 8-bit bi-directional data ports. It provides block memory transfers and six GPIO handshake protocols (none, leading edge, trailing edge, pulse, partial, and strobe) for a wide range of applications. Functionally similar to the E1330B, the E1458A is intended for digital I/O control applications such as digital subassembly test or data acquisition and control. Each of the 12 identical ports consists of eight data lines and six handshake/control lines. Each 8-bit port is individually configured for positive/negative true logic and read/write or tri-state condition. The E1458A is arranged into three banks of four ports each. Ports can be combined within a bank, allowing data transmission using bytes, words (16-bit), or long words (32-bit). Data transmission can be from a single port (8-bits) or from multiple ports up to all 12 ports.
All test equipment is used guaranteed in working order, unless stated in description that it is for parts or nonworking.
Test equipment can be returned in 7 days for refund of purchase price.
