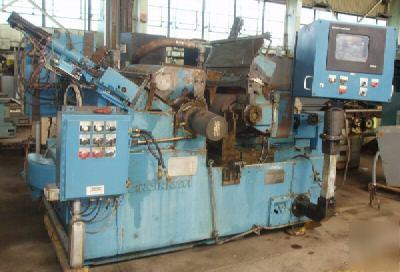

#340-20 CINCINNATI "TWINGRIP" CENTERLESS GRINDER
New 1964, Rebuilt/Retrofitted 1993,
Serial No 6M20HG5P-0037, Model 340-20,
Touch-Screen For Airtronics Inchworm Slide Adjustment
And Compensation And Regulating Wheel Control Of
Hydraulic Grinding Wheel Truing Attachment
Hydraulic Regulating Wheel Truing Attachment
Gibbed Lower Slide And Gibbed Upper Slide
SBS Automatic Grinding Wheel Balancing System
Refrofitted Servo-Drive Regulating Wheel Motor
Trabon Automatic Lubrication System
Diameter Capacity, Nominal................ 0" to 3"
Diameter Capacity, Maximum................ 6"
Grinding Wheel Diameter, Maximum.......... 24"
Grinding Wheel Width, Maximum............. 20"
Grinding Wheel Hole Diameter.............. 12"
Regulating Wheel Diameter, Maximum........ 14"
Regulating Wheel Width, Maximum........... 20"
Regulating Wheel Hole Diameter............ 5"
Regulating Wheel Speeds, Range............ 0 to 300 RPM
Grinding Wheel Motor, Horsepower.......... 40 HP
Floor Space Required, W x D............... 13'9" x 9'0"
Weight, Approximately..................... 22000 LBS
NOTE: This Machine Was Rebuilt/Retrofitted By
PRICE: F.O.B. OUR WAREHOUSE.............. $59,500.00
All machines/equipment subject to prior sale.
