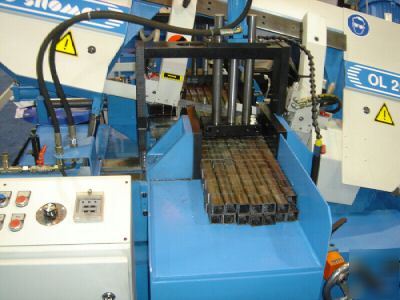

New siloma OL260A 10" auto horizontal band saw bandsaw

New siloma OL260A 10" auto horizontal band saw bandsaw

* Hydraulic material clamping by long-stroke cylinders
* Hydraulic bundle clamping by long-stroke cylinders
* Infinitely variable clamping pressure regulation
* Material switch (in automatic mode it detects when you run out of material)
* Flood Coolant System and Wash Down Hose
* 4 HP Motor with frequency controlled sawband drive.
Minimum rest in automatic mode
The rigid 'C' section frame carries the mountings for the two band wheels, heavy duty worm drive gear reducer, the band drive motor and saw guide arm mounting supports.
The band wheels are cast iron for long, productive life. The deflection free wheel hubs ensure the wheels run true regardless of tension stress or cutting loads. The spindle assemblies incorporate tapered roller bearings for greater rigidity and long service life. The drive motor is coupled to the transmission through a variable speed pulley.
The drive wheel transmission is designed and built by Jaespa to provide high efficiency speed reduction, which requires no external cooling, to deliver more power to the large diameter drive hub. This hub ensures that this developed torque is transferred to the blade with no strobing, enabling the machine to efficiently cut high alloys as well as free machining materials.
Automatic, Powered Chip Conveyor
The electrically powered chip conveyor auger automatically removes the saw chips from the saw while draining the cutting fluid back into the fluid reservoir. The automatic chip conveyor greatly reduces cleanup time and enables the machine to run longer without operator cleanup.
Electrical enclosure with door mounted, fused main line disconnect switch. The operator's control interface has all manual and automatic function initiation. Supply voltage 208-230/460v/60/3.
