Tektronix spectrum analyzer 7L12 plugin module
Tektronix spectrum analyzer 7L12 plugin module
From: Audra Wall
Subject Tektronix spectrum analyzer 7L12 plugin module

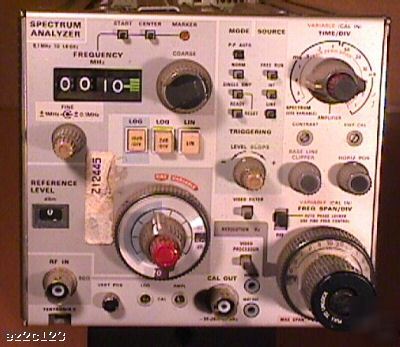

TEKTRONIX SPECTRUM ANALYZER PLUG-IN MODULE 7L12

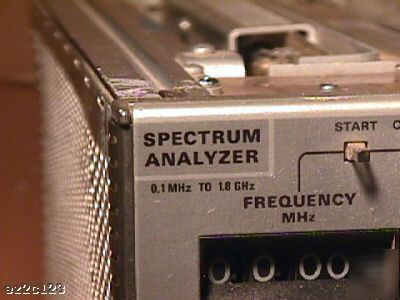

s/n BO30345 0.1 MHz to 1.8 GHz GOOD USED CONDITION.
Used with 7000 series Tektronix hardware,

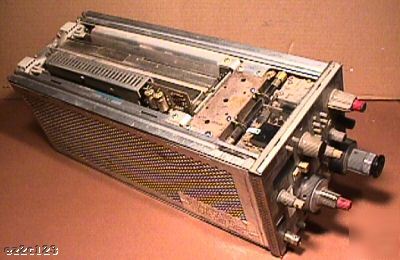

MEASURES 5 1/4" wide X 4 3/4" tall X 12 1/4" long.
Resolution bandwidth can be varied from 300 Hz to 3 MHz, with -115 dBm sensitivity at 300 Hz.
Automatic phase lock results in good stability.
The 7L12 meets the measurement requirements of many AM, FM, two-way radio and other communicatiosn systems.
The 7L12 has a 70 dB spurious-free display dynamic range; low level noise measurements are made accurately, easily.

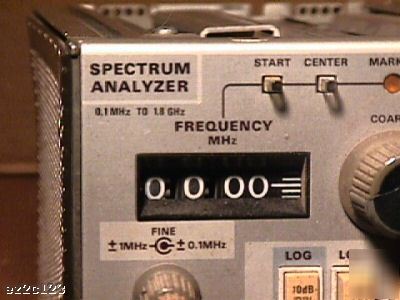

The 7L12 analyzer manual specifications are; displays frequencies from .1 MHz to 1.8 Ghz (microwave), frequency steps are in 1-2-5 sequence from 500/div to 100 MHz/div. The display modes are Log 10 Db/div, Log 2Db/div, Lin, Reference level is from -100 Dbm to +30 Dbm, featuring CRT Readout of center frequency Resolution Bandwidth from 300 Hz to 3 MHz and Automatic Phase locking.
This unit is complete with all knobs and controls . The 7L12 analyzer displays frequencies from .1 MHz to 1.8 Ghz (microwave) and but does not have digital storage like the 7L5, 7L14 and 7L18 featured.
This TEKTRONIX analyzer has a variety of uses regarding RF transmission or radio frequency communication from test, troubleshootingand repair to research, to analyzing TV or satellite signals.
Contact: audra-wall@rockford-industrial.com (Audra Wall)
