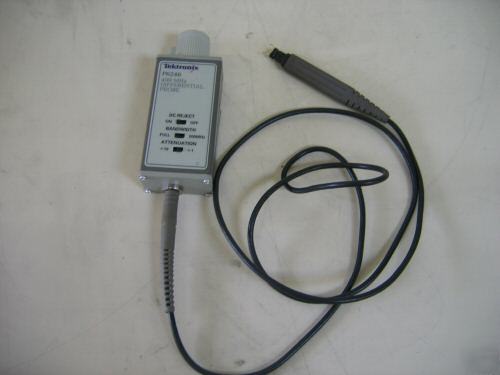

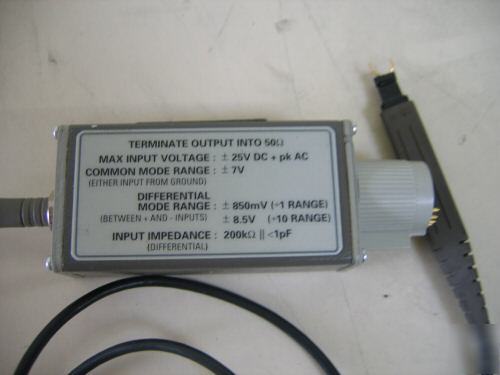

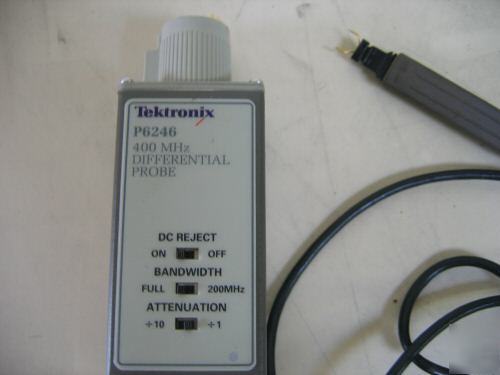

Tektronix P6246 Probe, Differential, DC - 400 MHz
* Description: The Tektronix P6246 Differential Probe enables users to make time domain or frequency domain measurements on high bandwidth signals commonly found in disk drive, digital IC design (RAMBUS) and communication applications (Gigabit Ethernet, IEEE-1394 Firewire and Fibre Channel). Tektronix P6246 probe is ideal for design verification of disk drive read channel electronics and timing analysis for troubleshooting ground bounce problems associated with high speed logic. They can also be used for pulse shape or cross talk compliance testing of high speed communication signals. Applications for the P6246 include
* Communications (Gigabit Ethernet, IEEE-1394, Fibre Channel)
* Semiconductor Characterization (RAMBUS)
* Disk Drive Read Channel Design
* Communication Pulse Shape Compliance
* Jitter, Cross-Talk, BERT Measurements
* Location of Ground Bounce
* Features and specifications of the P6246 include:
* Low Input Capacitance: <1 pF Differential
* Probe Input Connector: Two Standard 0.025 in./0.63 mm (0.1 in. center) Square Pin Receptacle (Female)
* Electrostatic Discharge Tolerant (IEC 801-2)

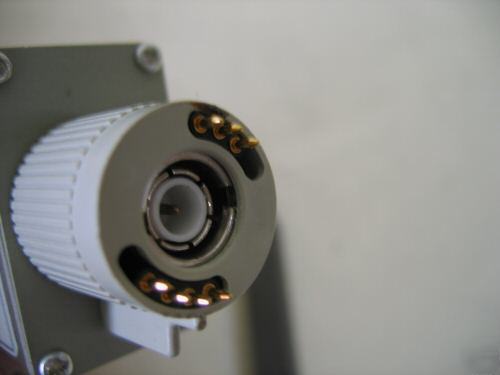

* Connects to TEKPROBE™ BNC Interface on TDS Series Oscilloscopes or Other Instruments Using 1103 TEKPROBE® Power Supply
* For Use with Oscilloscopes, Spectrum or Network Analyzers
* >60 dB (1000:1) Common Mode Rejection Ratio (CMRR)
* Small Probe Head Allows Easy Probing of SMDs
* Working Condition: Tested. Good.
* Other Comments / Notes: None
* Warranty: Rest assured that your purchase includes a 3-day DOA Guarantee. If the item is DOA, you will need to notify us within 3-days of receipt. Item(s) must be returned in the same condition as received within 7 days of receipt. (See below for further details).
We strongly recommend that you properly pack and insure the package against loss or damage. It is ultimately your responsibility that your returned product arrives at our location within the allotted return time frame in the same condition it was sent.
