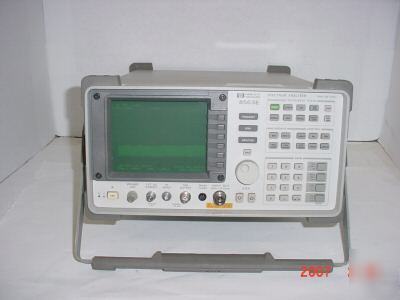

HP/Agilent 8563E 9 kHz - 26.5 GHz Spectrum Analyzer
The Agilent 8563E portable microwave spectrum analyzer offers the measurement capability and performance previously found in larger, more expensive benchtop analyzers. This analyzer has a standard frequency range of 9 kHz to 26.5 GHz (preselected from 2.75 GHz to 26.5 GHz), with optional low-end frequency coverage to 30 Hz.
The 8563E combines outstanding phase noise, sensitivity, 1 Hz resolution bandwidths, synthesized tuning and wide dynamic range in a MIL-rugged package built to withstand harsh environmental conditions. .
* Continuous 30 Hz to 26.5 GHz sweep
* Fast digital resolution bandwidths of 1, 3, 10, 30 and 100 Hz
* Adjacent channel power, channel power, carrier power, occupied bandwidth percentage and time-gated measurements standard
* Precision timebase and 1 Hz counter resolution
* Measurement personalities for digital radio and phase noise measurements
This unit has been calibrated by Advanced Test thru 03/09.07, it also includes a CD with Manual Set, Front Cover, one HP85700A 32K Ram Card, one HP 85620A Memory Module, one BNC Cable with BNC to Type N Adapter and Power Cord
