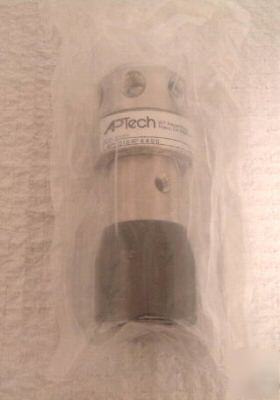

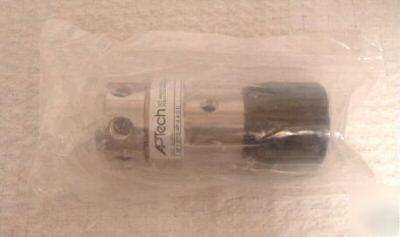

Ap tech single stage pressure regulator, high-purity

Ap tech single stage pressure regulator, high-purity

* AP TECH part No.: AP1101S 4P 44 00
* Construction: Body:316L Stainless Steel, Poppet, nozzle, diaphragm: 316L Stainless Steel, Seat: PCTFE
* Source Pressure: vacuum to 300 psig (21 bar)
* Delivery Pressure: 100mm Hg absolute to 10 psig (.7 bar)
* Port Configuration: (inlet) 2 high pressure, (outlet) 2 low pressure. 1/4-18 NPT female threads.
* Other Features/Details: Backside of regulator body is drilled & tapped (2 ea. x 10-32 UNF) for surface mounting screws. Inlet/Outlet ports are situated at 9, 11, 1, & 3 o'clock positions.
* Technical Information: I strongly recommend interested parties to log onto: http:// /PDF/AP1100HMI6039MAY2006.pdf (1100 series) for in depth technical information.
Thank you for your interest in this high quality specialized regulator.
