Pneumatic press work table frame welding fixture tools

Pneumatic press work table frame welding fixture tools

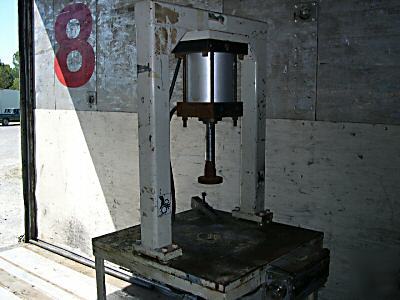

This pneumatic press frame was used in the Automotive Plastics injection parts industry
The base is 6'6" Tall x 24" x 28"
It has 17-3/4" wide x 28" tall under the U frame cylinder mount for tooling options less the gussests.
The table is 24"x24" and 35" tall with a 1" thick steel plate for the top or platten
It is mounted on 5" tall casters
the frame is constructed out of 1-1/2"x1-1/2"x1/4" angle iron
There is a pneumatic cylinder with about a 5" bore and 5" stroke with 1-1/2" rod
There is a 3" Dia. hole cut in the center of table
Many possiblities for this frame
Please feel free to contact us with any questions (***)-433-1939
