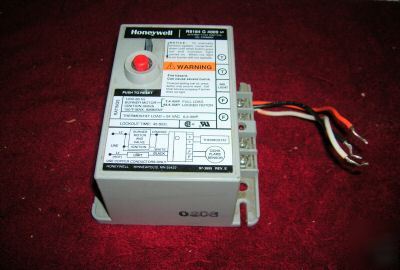

Honeywell R8184G fits beckett oil burner and others

Honeywell R8184G fits beckett oil burner and others

• Controls oil burner, oil valve (if desired) and the ignition transformer in response to a call for heat.
• Solid state flame sensing circuit.
• LED on terminal strip indicates system lockout.
• Enclosed safety switch with external reset button.
• Manual trip lever opens safety switch for system maintenance.
• Mounts on standard 4 x 4 in. junction box; select models may be mounted directly on burner housing.
• C554A Cadmium Sulfide Flame Detector and 24 Vac thermostat required.
Protectorelay® Oil Burner Control with 45 seconds lock out timing
For mounting on a standard 4 in. X 4 in. junction box or direct mounting on burner housing.
Electrical Rating; Contacts (full load)
7.4 A @ 120 Vac; 3.7 a @ 240 Vac
Electrical Rating; Contacts (locked rotor)
44.4 A @ 120 Vac; 22.2 A @ 240 Vac
Alarm Load Ratings (pilot duty)
75 VA @ 120/240 Vac, 50-60 Hz; 25 VA @ 24V, 50-60 Hz
Alarm Load Ratings (resistive)
1.5 A @ 120/240V, 50-60Hz; 3 A @ 24 V, 50-60 Hz
4 3/8 in. high x 4 1/8 in. wide x 2 1/2 in. deep
111 mm high x 104 mm wide x 64 mm deep
Approvals, Underwriters Laboratories Inc
UL Component Recognized; File no. MP268, Vol. 35 Sec. 1,3
Approvals, Canadian Standards Association
CSA Certified; File no. LR95329-1
With LED for lockout indication, and manual trip lever on safety switch to assure burner shutdown during servicing.
