3 axis 10 amp cnc stepper motor drivers / controller

3 axis 10 amp cnc stepper motor drivers / controller

3 X 10 Amp Microstepping Bipolar Stepper Motor Drivers

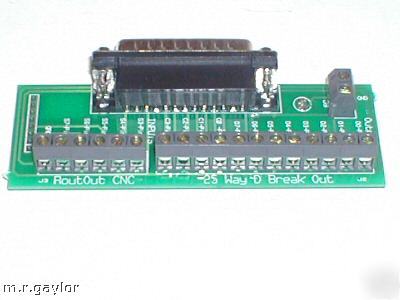

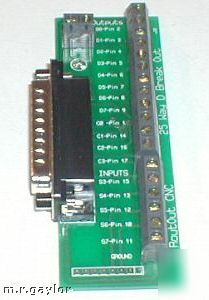

1 X LPT connector to connect the drivers to your computer with ease, you must have a LPT( printer port)

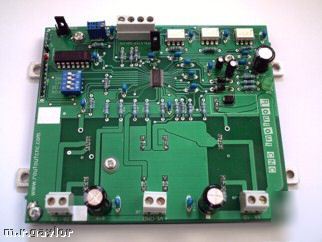

10 Amp Microstepping Bipolar Stepper Motor Driver .

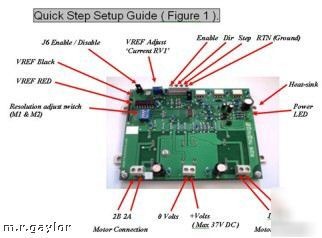

The RoutOut CNC stepper motor drive has many uses including for CNC retrofitting / robot control or driving your own CNC machine. It is simple to wire and operates with no external current setting resistors needed.
The RoutOut CNC stepper motor driver is a single axis (you get 3 off with this kit to drive a 3 Axis Milling / routing machine), pulse width modulated (PWM), Micro-stepping Bipolar driver with Full / Half / Quarter / 16th stepping capabilities.
It is directly compatible with all of the major CNC software including but not limited to RoutOut CNC ,Turbo CNC, Mach 2, Mach1, Mach 3, KCam, Ability systems – LPT Indexer, etc., the list goes on.
A free trial version of mach 3 can be downloaded from
* 10A 37V Output Drive Capabilities.
* 1/2 , 1/4 and 1/6 Step modes
* Synchronous Rectification for low power / heat dissipation
* Internal UVLO and Thermal shutdown circuitry.
* Small PCB foot print only 105mm x 123mm
* Internal 5V logic driver onboard (no need for 5v Supply)
* Enable – Turns the motor off when not being driven.
* Large built in heatsink with mounting flanges.
* Drive all sizes of motors from 3.5A - 10 Amps size 23, 34 etc
* Compatible with Mach 2 / 3 ,Routout CNC, KCam the list goes on.......
For a complete PDF Spec sheet Click on the link below. You will need Adobe Reader to read it.
Routout CNC Stepper Motor Driver PDF
All you need to get your router / CNC machine up and running in addition to the above is 3 X Stepper motors and 1 X 12 to 37 volt power supply. These drivers are capable of driving machines upto Bridgeport size or 3 X 3 metre flat bed routers and larger. Click Link below.
If you require any further information then please do not hesitate to contact me on Tel: (01269) 841230 or email A.Macdonald@rockford-industrial.com
For orders within the UK postage is £7.50 and for orders outside the UK postage is £10.00
