SCHAUBLIN SV12 UNIVERSAL MILLING MACHINE
TABLE DIMENSIONS 7-7/8" X 1-3/4" TILTING
VERTICAL STROKE OF TABLE 7-7/8"
HORIZONTAL STROKE OF TABLE 7-7/8"
VERTICAL & HORIZONTAL INSIDE SPINDLE TAPER #4MT
2 SPEED ELECTRIC MOTOR 1.0/1.35 HP 220V 3 PHASE 60 CYCLES

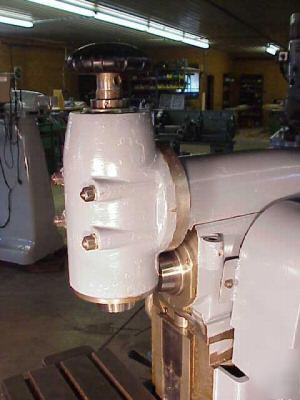

INCLUDES VERTICAL HEAD AND W20 DRAWBAR
OVERARM AND OUTBOARD SUPPORT FOR HORIZONTAL MILLING
HORIZONTAL SPINDLE SPEEDS (12) 100-150-200-290-300-450-580-(***)-900-1100-1400-2200
VERTICAL HEAD SPEEDS (12) 120-183-240-356-366-554-(***)-860-1108-1350-1720-2700
W20 DRAWTUBES FOR BOTH HORIZONTAL & VERTICAL
(9)W20 COLLETS 1/4", 9/16", 5/64", 1/8", 3/16", 5/16", 1/16", 7/16", 3/4", (1)BLANK
(2)BLANK #4MT SPINDLE ADAPTER SLEEVES
(1)#4MT TO #3MT WITH 1/2" JACOBS SUPERCHUCK
(1)W20 COLLET WITH BALL LOCATOR
(1)STUB MILLING ARBOR 1/2" PILOT
**NOTE- THE W20 COLLET SLEEVE IS MISSING FOR THE VERTICAL HEAD, IT ALLOWS USE OF W20 COLLETS, THIS CAN BE MADE FROM A BLANK #4MT ADAPTER THAT IS SUPPLIED**
MILL HAS BEEN THOROUGHLY CLEANED AND REPAINTED (NOT A SLOP JOB EITHER)
TEST RUN HERE AND PERFORMS AS IT SHOULD
YOU CAN USE MOST OF THE TOOLING USED ON SCHAUBLIN 102 LATHES AS THE TABLE IS SLOTTED THE SAME
VERY NICE, AND NOT AN EASY FIND HERE IN THE STATES
MUST GO FREIGHT, MUST BE SKIDDED, A $75.00 SKID FEE WILL APPLY
CAN BE PICKED UP AT OUR PLANT, WE'LL LOAD FOR FREE
