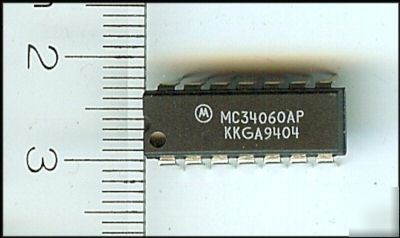

34060 / MC34060AP / MC34060 / control circuit

34060 / MC34060AP / MC34060 / control circuit

Now over 1,300 items in our Store!
Please note: This spec sheet may cover several different parts.
Fixed Frequency, PWM, Voltage Mode Single Ended Controllers
The MC34060A is a low cost fixed frequency, pulse width modulation control circuit designed primarily for single–ended
SWITCHMODE power supply control.
The MC34060A is specified over the commercial operating temperature range of 0° to +70°C, and the MC33060A is specified over an automotive temperature range of –40° to +85°C.
• Complete Pulse Width Modulation Control Circuitry
• On–Chip Oscillator with Master or Slave Operation
• On–Chip 5.0 V Reference, 1.5% Accuracy
• Adjustable Dead–Time Control
• Uncommitted Output Transistor Rated to 200 mA Source or Sink
